In-Phone Validation

How in-phone validation works

When a field worker photographs a completed form page, ScanForm’s OCR engine reads the paper immediately and runs a set of automated checks before the data is submitted. If any check fails, the app displays an alert on-screen and prompts the worker to correct the paper form and retake the photo.

Important

This is fully automated, real-time validation — no human verifier is involved at this stage. The goal is to catch critical errors at the point of data capture, while the form is still in hand and corrections are still possible.

The validation logic is defined in data_validation.py using a Python DSL (ChecksBuilder). The sections below explain the key concepts, the eligibility rules, and every check applied to this form.

Core concepts

Concept / Parameter	Meaning
ScanForm validation DSL — key concepts
b.question(name, row, boxals_threshold_for_eligibility=N)	Registers a field for validation. The threshold N is the minimum number of filled boxes required for the field to be considered ‘active’ (i.e. the worker has started filling it in).
b.any_active(checked_groups, checked_groups_threshold=N, discard_criteria=[…])	Defines row eligibility. A patient row is only validated if ≥N of the specified key fields are active AND no discard bubble is marked. This prevents false alerts on genuinely blank rows at the bottom of a page.
check__boxes__enough_filled	The field must have at least 1 filled box. Used to enforce required digit-box or date fields.
check__checkboxes__enough_answers + check__checkboxes__not_too_many_answers (paired)	Together these enforce exactly one oval bubble selected — used for mandatory single-select fields.
check__checkboxes__not_too_many_answers (alone)	At most one oval bubble may be selected. The field is optional, but if filled it must not have multiple ovals crossed — used for optional single-select fields.
PageNumberBlock(0)	Left page of the physical spread.
PageNumberBlock(1)	Right page of the physical spread.
Commented-out lines	Fields that exist on the paper form and are exported by OCR, but are not actively validated in-phone. They are available in the dataset but will not trigger an on-screen alert.

Eligibility rules

Before any field-level check is run, the system first determines whether a patient row is eligible for validation. This two-stage gate prevents spurious alerts on empty rows.

Page-level gate

A discard bubble (discard_page) is read once at page level. If it is marked, all 5 patient rows on both pages are skipped 014 no field checks are triggered at all.

Row-level gate

For each of the 5 patient rows, the system checks:

Note

A row is validated only if:

discard_page is not marked, AND
discard_row is not marked for that row, AND
At least 3 of the following 12 key fields are active (i.e. have 2651 filled box or bubble):

tb_reg_date, tb_reg_number, participant_age, participant_age_unit, participant_sex, participant_risk, referral_source, treatment_regimen, disease_site, tb_history, how_diagnosed, hiv_status

The threshold of 3 out of 12 is deliberately generous 014 it means that even a partially completed row (e.g. only the date, number, and one oval filled) will trigger validation, while a completely blank row at the bottom of the page will not.

Variable	Label	Eligibility Threshold	Notes
Fields used in row eligibility assessment
≥3 of these 12 fields must be active for validation to run on that row
tb_reg_date	Registration Date	2	At least 2 boxes filled
tb_reg_number	TB Registration Number	3	At least 3 boxes filled
participant_age	Age	1 (default)	Any fill
participant_age_unit	Y/M	1 (default)	Any fill
participant_sex	Sex	1 (default)	Any oval
participant_risk	Occupation / Risk Group	2	At least 2 boxes/ovals filled
referral_source	Referral	2	At least 2 boxes/ovals filled
treatment_regimen	Treatment Regimen	1 (default)	Any oval
disease_site	Site of Disease	1 (default)	Any oval
tb_history	Treatment History	2	At least 2 boxes/ovals filled
how_diagnosed	Bact/Cl Diagnosed	1 (default)	Any oval
hiv_status	HIV Status	1 (default)	Any oval

Validated fields and checks

The table below lists every field-level check that runs in-phone. Checks are applied to each of the 5 patient rows independently.

Variable	Label	Page	Check Type	Rule	On Failure
In-phone checks — all 26 validated fields
Applied independently to each of the 5 patient rows per page
tb_reg_date	Registration Date	📱 Left	📝 Required fill	≥1 box filled	Alert: field is required
tb_reg_number	TB Registration Number	📱 Left	📝 Required fill	≥1 box filled	Alert: field is required
participant_age	Age	📱 Left	📝 Required fill	≥1 box filled	Alert: field is required
participant_age_unit	Y/M	📱 Left	📝 Required fill	≥1 box filled	Alert: field is required
participant_sex	Sex	📱 Left	✅ Exactly one	Exactly 1 oval	Alert: exactly one option required
participant_risk	Occupation / Risk Group	📱 Left	✅ Exactly one	Exactly 1 oval	Alert: exactly one option required
referral_source	Referral	📱 Left	✅ Exactly one	Exactly 1 oval	Alert: exactly one option required
treatment_regimen	Treatment Regimen	📱 Left	✅ Exactly one	Exactly 1 oval	Alert: exactly one option required
disease_site	Site of Disease	📱 Left	✅ Exactly one	Exactly 1 oval	Alert: exactly one option required
tb_history	Treatment History	📱 Left	✅ Exactly one	Exactly 1 oval	Alert: exactly one option required
how_diagnosed	Bact/Cl Diagnosed	📱 Left	✅ Exactly one	Exactly 1 oval	Alert: exactly one option required
lam_result	LAM Result	📱 Left	⚠️ Max one	≤1 oval	Alert: no more than one option
xpert_result	Xpert Result	📱 Left	⚠️ Max one	≤1 oval	Alert: no more than one option
culture_result	Culture Result	📱 Left	⚠️ Max one	≤1 oval	Alert: no more than one option
xray_result	XRay Result	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
dst_result	DST Result	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
second_line	Moved to 2nd Line Tx	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
treat_outcome	Treatment Outcome	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
adherence_support	DOT and Adherence Support	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
hiv_status	HIV Status	📱 Right	✅ Exactly one	Exactly 1 oval	Alert: exactly one option required
hiv_test_time	HIV Test Time	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
arv_status	ARV Start Time	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
cpt_status	CPT Status	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
enrolled_prp	Enrolled into PRP	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
ptld_how_diagnosed	PTLD Diagnosis Method	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option
prp_outcome	PRP Outcome	📱 Right	⚠️ Max one	≤1 oval	Alert: no more than one option

Check types explained

Icon	Check Type	Fields Using	Description
Three check types deployed in this form
📝 Required fill	enough_filled	4	The field must have at least 1 filled box. Applies to digit-box and date fields that are mandatory. If the worker left the field blank on an otherwise active row, an alert fires immediately.
✅ Exactly one	enough_answers + not_too_many	9	Both a lower and upper bound on the number of crossed ovals. Used for mandatory single-select questions. Fires if the field is blank (no oval crossed) OR if more than one oval is crossed.
⚠️ Max one	not_too_many	13	Upper bound only. The field is optional, so leaving it blank is acceptable. However, if the worker crosses two or more ovals, an alert fires. Used for optional single-select questions.

Fields not validated in-phone

Many fields on the form are registered in the OCR pipeline but are intentionally excluded from in-phone validation (shown as commented-out lines in data_validation.py). These fields are still OCR-processed and exported 014 they are simply not checked in real time.

Note

Exclusion from in-phone validation does not mean the data is ignored. These fields are fully exported and subject to pipeline-level checks (see the Data Pipeline tab) after submission.

Section	Fields / Ovals Not Validated In-Phone
Fields present on form but excluded from in-phone validation
All are still OCR-processed and available in the exported dataset
Patient identity	participant_reg_id
Demographics	participant_sex (individual ovals: male, female)
Risk group	All 8 individual risk ovals (miners, ex_miners, mining_community, health_care_workers, prisoner, hh_contact, migrant, risk_other)
Referral	All 7 individual referral ovals (community, ncd, private, walk_in, opd, ward, art_referral)
Treatment	All 4 regimen ovals; treatment_regimen_other; all 2 disease_site ovals; all 6 tb_history ovals; all 2 how_diagnosed ovals
Initial lab dates	lam_date, smear_date, smear_result, smear_plus, xpert_date, culture_date
Initial lab results (individual ovals)	lam_result ovals, xpert_result ovals, culture_result ovals
Follow-up smears	smear_date_2/5/6, smear_result_2/5/6, smear_plus_2/5/6 (all fields and ovals)
Imaging & DST	xray_date, xray_result ovals, dst_date, dst_result ovals
Outcome	outcome_date; second_line ovals; treat_outcome ovals; adherence_support ovals
HIV / ART	hiv_status ovals; hiv_test_time ovals; arv_status ovals; arv_id; art_reg_id; cpt_status ovals; cpt_start_date
PRP / PTLD	enrolled_prp ovals; ptld_how_diagnosed ovals; prp_outcome ovals
Administrative	page_number, book_number, discard_row (checkbox), implementation_error, photo_taken

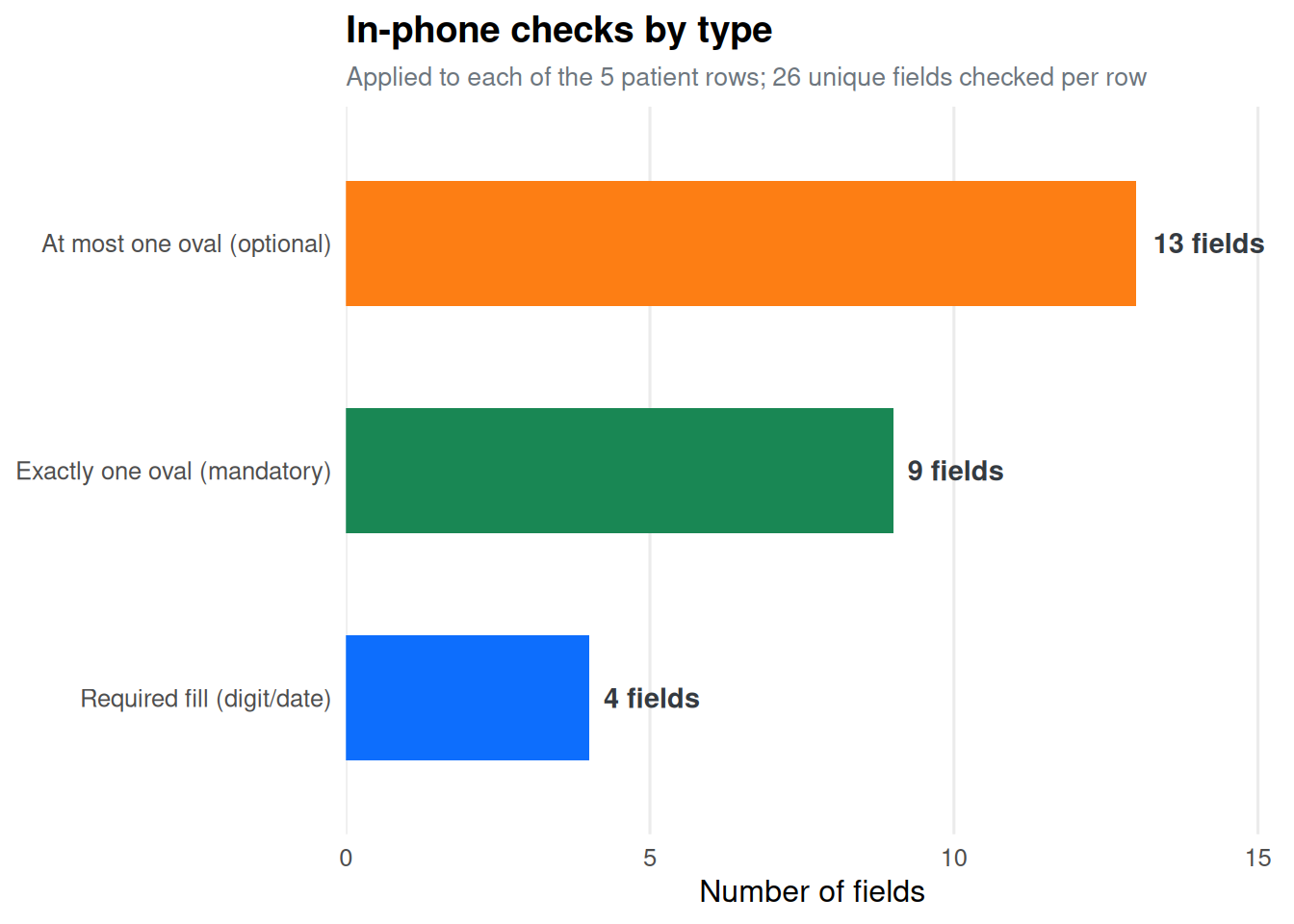

Validation summary

Tip

26 fields are validated per patient row. With 5 rows per page, up to 130 individual checks may fire on a single page scan. The eligibility gate (2653 of 12 key fields active) ensures that only rows where a patient has genuinely been started trigger any checks.
